SpringBoot+Mybatis+Druid 整合

# 1. 新建 SpringBoot 项目

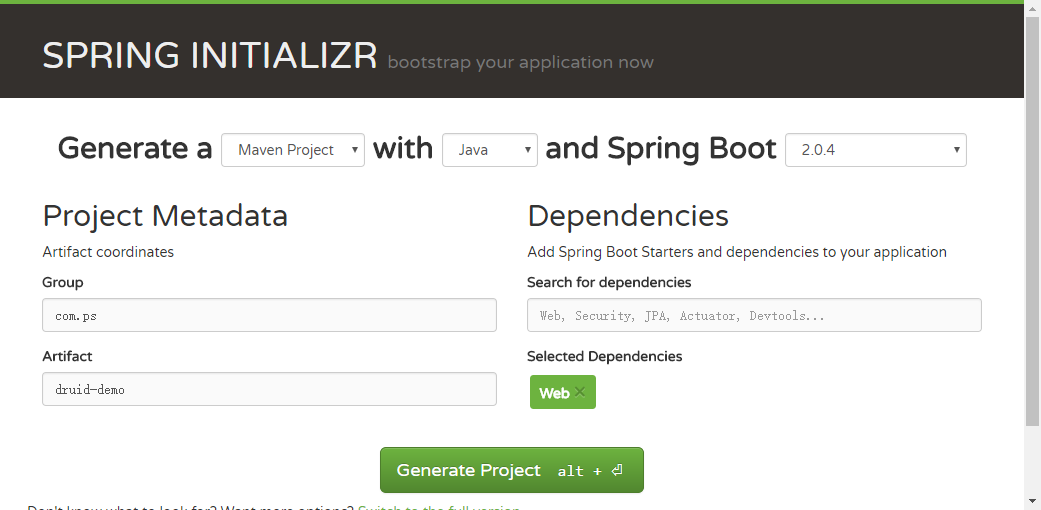

可以直接到 SpringBoot 官网快速获取

20180828-springboot-qkstart

# 2.pom.xml 引入相关依赖

	<?xml version="1.0" encoding="UTF-8"?>
	<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.ps</groupId>
	<artifactId>druid-demo</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>druid-demo</name>
	<description>Demo project for Spring Boot</description>

	<parent>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-parent</artifactId>
	<version>2.0.4.RELEASE</version>
	<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
	<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
	<java.version>1.8</java.version>
	<mysql-connector-java.version>8.0.12</mysql-connector-java.version>
	<mybatis.version>3.3.0</mybatis.version>
	<druid.version>1.0.10</druid.version>
	<ibatis-core.version>3.0</ibatis-core.version>
	</properties>

	<dependencies>
	<!-- database start -->
	<!-- Druid 监控 -->
	<dependency>
	<groupId>com.alibaba</groupId>
	<artifactId>druid-spring-boot-starter</artifactId>
	<version>1.1.10</version>
	</dependency>

	<dependency>
	<groupId>mysql</groupId>
	<artifactId>mysql-connector-java</artifactId>
	</dependency>
	<dependency>
	<groupId>org.mybatis</groupId>
	<artifactId>mybatis</artifactId>
	<version>${mybatis.version}</version>
	</dependency>

	<!-- 添加监控之后避免冲突注释掉 <dependency> <groupId>com.alibaba</groupId> <artifactId>druid</artifactId>
	<version>${druid.version}</version> </dependency> -->

	<dependency>
	<groupId>org.springframework</groupId>
	<artifactId>spring-jdbc</artifactId>
	</dependency>

	<dependency>
	<groupId>org.mybatis</groupId>
	<artifactId>mybatis</artifactId>
	<version>${mybatis.version}</version>
	</dependency>

	<dependency>
	<groupId>org.mybatis</groupId>
	<artifactId>mybatis-spring</artifactId>
	<version>1.2.2</version>
	</dependency>
	<!-- database end -->

	<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-web</artifactId>
	</dependency>

	<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-test</artifactId>
	<scope>test</scope>
	</dependency>
	</dependencies>

	<build>
	<plugins>
	<plugin>
	<groupId>org.mybatis.generator</groupId>
	<artifactId>mybatis-generator-maven-plugin</artifactId>
	<version>1.3.2</version>
	<configuration>
	<!-- 指定配置文件的位置 -->
	<configurationFile>${basedir}/src/main/resources/generatorConfig.xml</configurationFile>
	<!-- 输出详细日志 -->
	<verbose>true</verbose>
	<!-- 覆盖已有文件 -->
	<overwrite>true</overwrite>
	</configuration>
	<dependencies>
	<dependency>
	<groupId>com.freetmp</groupId>
	<artifactId>dolphin-mybatis-generator</artifactId>
	<version>1.1.0</version>
	</dependency>
	<dependency>
	<groupId>mysql</groupId>
	<artifactId>mysql-connector-java</artifactId>
	<version>${mysql-connector-java.version}</version>
	</dependency>
	</dependencies>
	</plugin>
	<plugin>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-maven-plugin</artifactId>
	</plugin>
	</plugins>
	</build>
	</project>

# 3. 新数据表 + 配置 generatorConfig.xml

建表

	CREATE TABLE IF NOT EXISTS user_info (
	user_id BIGINT ( 20 ) NOT NULL AUTO_INCREMENT,
	user_name CHAR ( 15 ) NOT NULL,
	user_password CHAR ( 15 ) NOT NULL,
	user_email VARCHAR ( 20 ) NOT NULL UNIQUE,
	user_birthday DATETIME,
	user_age INT,
	user_salary DECIMAL ( 10, 2 ),
	PRIMARY KEY ( user_id )
	) ENGINE = INNODB DEFAULT charset = utf8mb4;

配置 generatorConfig.xml

	<?xml version="1.0" encoding="UTF-8" ?>
	<!DOCTYPE generatorConfiguration PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN" "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >
	<generatorConfiguration>
	<!-- 参考文档：中文 http://generator.sturgeon.mopaas.com/afterRunning.html，原文 http://www.mybatis.org/generator/-->
	<!-- 示例 table：create table mybatis_user (user_name CHAR (15) not null,user_password
	CHAR (15) not null,user_email VARCHAR (20) not null unique,user_birthday DATETIME,user_age
	INT,user_salary DECIMAL (10,2),primary key (user_name)) engine=innodb default
	charset=utf8; -->
	<!-- 依赖包直接定义在 mybatis-generator-maven-plugin 的 dependencies 中 -->
	<context id="default" targetRuntime="MyBatis3">
	<property name="javaFileEncoding" value="UTF-8" />

	<!-- 替换 Example 为 Criteria -->
	<plugin
	type="org.mybatis.generator.plugins.RenameExampleClassPlugin">
	<property name="searchString" value="Example$" />
	<property name="replaceString" value="Criteria" />
	</plugin>
	<!-- 表格对应 Java bean 类型实现 java.io.Serializable 接口，添加默认的 serialVersionUID -->
	<plugin type="org.mybatis.generator.plugins.SerializablePlugin">
	<property name="suppressJavaInterface " value="true" />
	</plugin>
	<!-- 表格对应 Java bean 类型增加 toString 方法 -->
	<plugin type="org.mybatis.generator.plugins.ToStringPlugin" />
	<!-- 增加分页支持 -->
	<plugin
	type="com.freetmp.mbg.plugin.page.MySqlPaginationPlugin" />
	<!-- GeneratedCriteria 中 addCriterion (String condition, Object value, String
	property) 不会 throw new RuntimeException -->

	<!-- 生成注释不带时间戳，否则即使表结构没变，每次生成文件都有变更 -->
	<commentGenerator>
	<property name="suppressDate" value="true" />
	</commentGenerator>
	<!-- jdbc 连接定义 -->
	<jdbcConnection driverClass="com.mysql.jdbc.Driver"
	connectionURL="jdbc:mysql://127.0.0.1:3306/druid_test?useUnicode=true&characterEncoding=UTF-8"
	userId="root" password="123456" />
	<!-- 强制数据库小数类型为 java.math.BigDecimal -->
	<javaTypeResolver>
	<property name="forceBigDecimals" value="true" />
	</javaTypeResolver>
	<!-- 表格对应 Java bean 类型生成，结果为 $TABLE_NAME$.java 和 $TABLE_NAME$Criteria.java -->
	<javaModelGenerator
	targetPackage="com.ps.druiddemo.dao.dto"
	targetProject="./src/main/java/">
	<property name="constructorBased" value="false" />
	<!-- 指定 Java bean 公共父类 <property name="rootClass" value="" /> -->
	<property name="trimStrings" value="true" />
	</javaModelGenerator>
	<!-- sql 语句生成，结果为 $TABLE_NAME$Mapper.xml -->
	<sqlMapGenerator
	targetPackage="com.ps.druiddemo.dao.sqlmap"
	targetProject="./src/main/java/" />
	<!-- 应用客户端生成，结果为 $TABLE_NAME$Mapper.java -->
	<javaClientGenerator
	targetPackage="com.ps.druiddemo.dao.mapper"
	targetProject="./src/main/java/" type="XMLMAPPER">
	<!-- 指定客户端公共接口 <property name="rootInterface" value="" /> -->
	</javaClientGenerator>

	<!-- 以下定义需要生成的表 -->
	<table schema="" tableName="user_info" />

	</context>
	</generatorConfiguration>

# 4. 生成 mybatisMapper

Maven 下执行命令：

mybatis-generator:generate -X

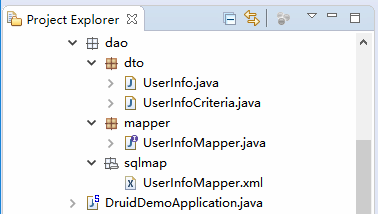

生成效果：

20180828-mybatis-generator

# 5. 配置数据源信息

application.properties 中添加配置：

	##database start
	druid.driverClassName=com.mysql.jdbc.Driver
	druid.url=jdbc:mysql://127.0.0.1:3306/druid_test?useUnicode=true&characterEncoding=UTF-8
	druid.username=root
	#druid.password=123456
	druid.initialSize=10
	druid.minIdle=6
	druid.maxActive=50
	druid.maxWait=60000
	druid.timeBetweenEvictionRunsMillis=60000
	druid.minEvictableIdleTimeMillis=300000
	druid.validationQuery=SELECT 'x'
	druid.testWhileIdle=true
	druid.testOnBorrow=false
	druid.testOnReturn=false
	druid.poolPreparedStatements=false
	druid.maxPoolPreparedStatementPerConnectionSize=20
	#druid.filters=wall,stat
	druid.filters=wall,stat,config
	druid.publicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBAJIozuO9Uc1GwR1kwMI+E1eKzehr56NGiZnzamxSXnqEyy1pcECuWTfRFf3hKdyr0YuoUuj8yXRRSYn8JZFwI/UCAwEAAQ==
	druid.password=XPKL0bkj/9ECEtf4Jl/1k//FCWyM0q8iY+V34uqyhTc/nA67KZ4BVC1yq/hSnF9Ihyxq4+IyanH7yPYEe/STCQ==
	##database end

# 6. 添加 Druid+Mybatis 配置

新建 datasource.xml

	<?xml version="1.0" encoding="UTF-8"?>
	<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:jdbc="http://www.springframework.org/schema/jdbc"
	xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd
	http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc-4.3.xsd
	http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring-1.2.xsd
	http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.3.xsd">

	<!-- 数据源 -->
	<bean id="dataSource"
	class="com.alibaba.druid.pool.DruidDataSource" init-method="init"
	destroy-method="close">
	<!-- 数据库基本信息配置 -->
	<property name="url" value="${druid.url}" />
	<property name="username" value="${druid.username}" />
	<property name="password" value="${druid.password}" />
	<property name="connectionProperties" value="config.decrypt=true;config.decrypt.key=${druid.publicKey}" />
	<property name="driverClassName"
	value="${druid.driverClassName}" />

	<!-- 初始化连接数量 -->
	<property name="initialSize" value="${druid.initialSize}" />
	<!-- 最小空闲连接数 -->
	<property name="minIdle" value="${druid.minIdle}" />
	<!-- 最大并发连接数 -->
	<property name="maxActive" value="${druid.maxActive}" />
	<!-- 配置获取连接等待超时的时间 -->
	<property name="maxWait" value="${druid.maxWait}" />

	<!-- 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒 -->
	<property name="timeBetweenEvictionRunsMillis"
	value="${druid.timeBetweenEvictionRunsMillis}" />

	<!-- 配置一个连接在池中最小生存的时间，单位是毫秒 -->
	<property name="minEvictableIdleTimeMillis"
	value="${druid.minEvictableIdleTimeMillis}" />
	<property name="validationQuery"
	value="${druid.validationQuery}" />
	<property name="testWhileIdle" value="${druid.testWhileIdle}" />
	<property name="testOnBorrow" value="${druid.testOnBorrow}" />
	<property name="testOnReturn" value="${druid.testOnReturn}" />

	<!-- 打开 PSCache，并且指定每个连接上 PSCache 的大小如果用 Oracle，则把 poolPreparedStatements 配置为 true，mysql 可以配置为 false。 -->
	<property name="poolPreparedStatements"
	value="${druid.poolPreparedStatements}" />
	<property name="maxPoolPreparedStatementPerConnectionSize"
	value="${druid.maxPoolPreparedStatementPerConnectionSize}" />

	<!-- 配置监控统计拦截的 filters -->
	<property name="filters" value="${druid.filters}" />
	</bean>

	<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
	<property name="dataSource" ref="dataSource" />
	</bean>
	<bean id="transactionTemplate" class="org.springframework.transaction.support.TransactionTemplate">
	<property name="transactionManager" ref="transactionManager" />
	<property name="timeout" value="30"/> <!-- in seconds -->
	<property name="propagationBehaviorName" value="PROPAGATION_REQUIRED"/>
	<property name="isolationLevelName" value="ISOLATION_DEFAULT"/>
	</bean>
	<tx:annotation-driven transaction-manager="transactionManager" />

	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
	<property name="configLocation" value="classpath:/mybatis.xml"></property>
	<property name="dataSource" ref="dataSource" />
	<property name="mapperLocations">
	<array>
	<value><![CDATA[classpath:com/ps/druiddemo/dao/sqlmap//Mapper.xml]]></value>
	</array>
	</property>
	</bean>
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
	<property name="basePackage" value="com.ps.druiddemo.dao.mapper" />
	<property name="nameGenerator">
	<bean class="org.springframework.beans.factory.support.DefaultBeanNameGenerator"></bean>
	</property>
	</bean>
	</beans>

新建 mybatis.xml 配置

	<?xml version="1.0" encoding="UTF-8"?>
	<!DOCTYPE configuration
	PUBLIC "-//ibatis.apache.org//DTD Config 3.0//EN"
	"http://ibatis.apache.org/dtd/ibatis-3-config.dtd">
	<configuration>
	<settings>
	<setting name="cacheEnabled" value="false"/>
	<setting name="lazyLoadingEnabled" value="false"/>
	<setting name="aggressiveLazyLoading" value="true"/>
	<setting name="logImpl" value="STDOUT_LOGGING"/>
	</settings>
	</configuration>

# 7. 添加 spring 配置

新建 druid-test.spring.xml 导入数据源配置：

	<import resource="classpath:datasource.xml"/>
	<context:component-scan base-package="com.ps.druiddemo" />

com.ps.druiddemo.config 包下新增两个类否则配置不会被加载

Config.java

	package com.ps.druiddemo.config;

	import org.springframework.context.annotation.Configuration;
	import org.springframework.context.annotation.ImportResource;

	@Configuration
	@ImportResource(locations={"classpath:druid-test.spring.xml"})
	public class Config {
	}

DataSourceConfiguration.java

	package com.ps.druiddemo.config;

	import javax.sql.DataSource;

	import org.springframework.context.annotation.Bean;
	import org.springframework.context.annotation.Configuration;
	import org.springframework.transaction.annotation.EnableTransactionManagement;

	import com.alibaba.druid.spring.boot.autoconfigure.DruidDataSourceBuilder;

	@Configuration
	@EnableTransactionManagement // 启注解事务管理，等同于 xml 配置方式的 <tx:annotation-driven />
	public class DataSourceConfiguration {
	@Bean
	public DataSource dataSource(org.springframework.core.env.Environment environment) {
	return DruidDataSourceBuilder
	.create()
	.build(environment, "spring.datasource.druid.");
	}
	}

# 8. 编写 Controller 接口

UserInfoController.java

	package com.ps.druiddemo.controller;

	import java.util.List;

	import org.springframework.beans.factory.annotation.Autowired;
	import org.springframework.stereotype.Controller;
	import org.springframework.web.bind.annotation.RequestMapping;
	import org.springframework.web.bind.annotation.ResponseBody;

	import com.ps.druiddemo.dao.dto.UserInfo;
	import com.ps.druiddemo.dao.dto.UserInfoCriteria;
	import com.ps.druiddemo.dao.mapper.UserInfoMapper;

	@Controller
	@RequestMapping("/user")
	public class UserInfoController {
	@Autowired
	UserInfoMapper userInfoMapper;

	@ResponseBody
	@RequestMapping("/getAll")
	public List<UserInfo> getAllUser() {
	return userInfoMapper.selectByExample(new UserInfoCriteria());
	}
	}

# 9. 启动项目测试接口

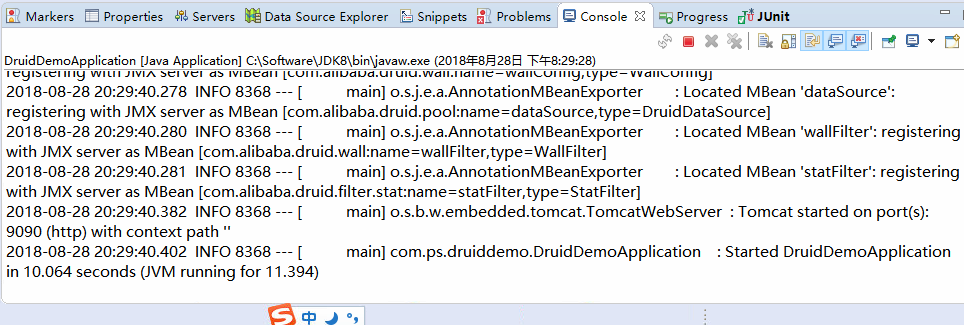

20180828-druid-demo-start

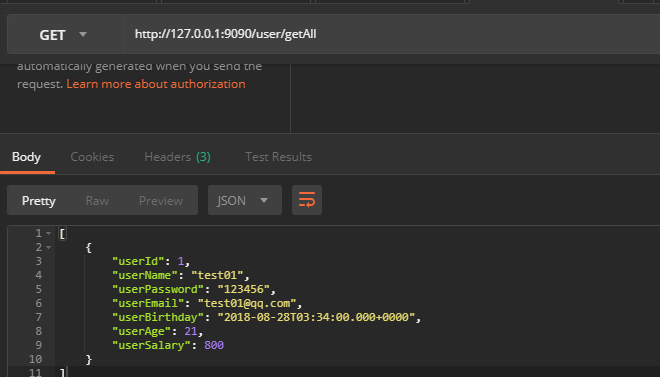

20180826-druid-demo-test

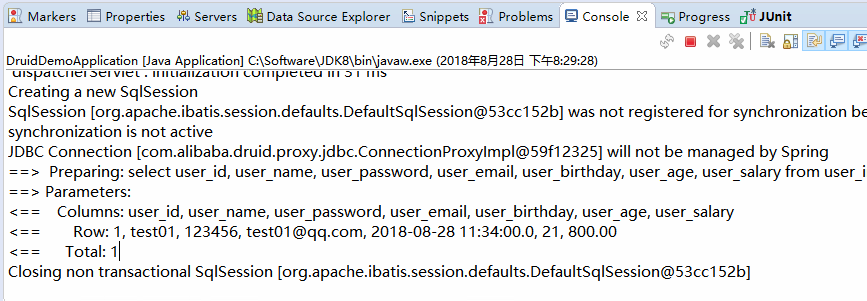

20180826-console

# 10. 数据库密码加密

使用 druid-1.1.10.jar 加密密码

C:\Software\apache-maven-3.5.3\repository\com\alibaba\druid\1.1.10>java -cp druid-1.1.10.jar com.alibaba.druid.filter.config.ConfigTools 123456
privateKey:MIIBUgIBADANBgkqhkiG9w0BAQEFAASCATwwggE4AgEAAkEAkijO471RzUbBHWTAwj4TV4rN6Gvno0aJmfNqbFJeeoTLLWlwQK5ZN9EV/eEp3KvRi6hS6PzJdFFJifwlkXAj9QIDAQABAkAP59j797JbQIPrivdfLBo2wKg/zt5aama3FkJSn3QgqQBPM9Vc967c718WuqPo1+dqB2qhWCU5/icjkTEG8NRRAiEA4NlQCVMRokij+dRwGVH2bCTmQzCdK0ybYnEszntOt7MCIQCmaKAzpFmGq3h827QqHgbLtAuMv+IuhKDBj65LvTBhtwIffLgNrR5mqZ2hVvJ/O4w7I8FT9/D/PQVBK1mbgOzkvQIgCT9jN7t4Zi19QqMK/hQxGHzm72lybldcf6U2cGsRFz0CIESmGij7EIsrCl/3uGrI3xTRSxjc6e2hXqWMXcQuy351
publicKey:MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBAJIozuO9Uc1GwR1kwMI+E1eKzehr56NGiZnzamxSXnqEyy1pcECuWTfRFf3hKdyr0YuoUuj8yXRRSYn8JZFwI/UCAwEAAQ==
password:XPKL0bkj/9ECEtf4Jl/1k//FCWyM0q8iY+V34uqyhTc/nA67KZ4BVC1yq/hSnF9Ihyxq4+IyanH7yPYEe/STCQ==

datasource.xml 配置修改

<property name="password" value="${druid.password}" />
		<property name="connectionProperties" value="config.decrypt=true;config.decrypt.key=${druid.publicKey}" />

application.properties 配置修改

druid.filters=wall,stat,config

druid.publicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBAJIozuO9Uc1GwR1kwMI+E1eKzehr56NGiZnzamxSXnqEyy1pcECuWTfRFf3hKdyr0YuoUuj8yXRRSYn8JZFwI/UCAwEAAQ==

druid.password=XPKL0bkj/9ECEtf4Jl/1k//FCWyM0q8iY+V34uqyhTc/nA67KZ4BVC1yq/hSnF9Ihyxq4+IyanH7yPYEe/STCQ==

# 11.Druid 监控配置

application.properties 添加配置

	## 监控
	#是否启用 StatFilter 默认值 true
	spring.datasource.druid.filter.stat.log-slow-sql= true
	spring.datasource.druid.filter.stat.slow-sql-millis=1000
	spring.datasource.druid.filter.stat.merge-sql=true
	spring.datasource.druid.filter.stat.db-type=mysql
	spring.datasource.druid.filter.stat.enabled=true


	#spring.datasource.druid.filters=slf4j
	#配置 slf4j
	spring.datasource.druid.filter.slf4j.enabled=true
	spring.datasource.druid.filter.slf4j.connection-log-enabled=true
	spring.datasource.druid.filter.slf4j.connection-close-after-log-enabled=true
	spring.datasource.druid.filter.slf4j.connection-commit-after-log-enabled=true
	spring.datasource.druid.filter.slf4j.connection-connect-after-log-enabled=true
	spring.datasource.druid.filter.slf4j.connection-connect-before-log-enabled=true
	spring.datasource.druid.filter.slf4j.connection-log-error-enabled=true
	spring.datasource.druid.filter.slf4j.data-source-log-enabled=true
	spring.datasource.druid.filter.slf4j.result-set-log-enabled=true
	spring.datasource.druid.filter.slf4j.statement-log-enabled=true

	#配置 web-stat-filter
	spring.datasource.druid.web-stat-filter.enabled=true
	spring.datasource.druid.web-stat-filter.url-pattern=/*
	spring.datasource.druid.web-stat-filter.exclusions=.js,.gif,.jpg,.png,.css,.ico,/druid/*
	spring.datasource.druid.stat-view-servlet.allow=127.0.0.1
	#spring.datasource.druid.stat-view-servlet.allow=
	#你可以配置 principalSessionName，使得 druid 能够知道当前的 cookie 的用户是谁
	spring.datasource.druid.web-stat-filter.principal-cookie-name=admin
	#你可以配置 principalSessionName，使得 druid 能够知道当前的 session 的用户是谁
	spring.datasource.druid.web-stat-filter.principal-session-name=admin
	#置 profileEnable 能够监控单个 url 调用的 sql 列表。
	spring.datasource.druid.web-stat-filter.profile-enable=true
	#session 统计功能
	spring.datasource.druid.web-stat-filter.session-stat-enable=true
	#最大 session 数
	spring.datasource.druid.web-stat-filter.session-stat-max-count=100000

	#配置 StatViewServlet
	spring.datasource.druid.stat-view-servlet.enabled=true
	spring.datasource.druid.stat-view-servlet.login-username=admin
	spring.datasource.druid.stat-view-servlet.login-password=admin
	spring.datasource.druid.stat-view-servlet.url-pattern=/druid/*
	spring.datasource.druid.stat-view-servlet.reset-enable=true

	#配置 wall filter
	spring.datasource.druid.filter.wall.enabled=true
	spring.datasource.druid.filter.wall.db-type=mysql
	spring.datasource.druid.filter.wall.config.alter-table-allow=false
	spring.datasource.druid.filter.wall.config.truncate-allow=false
	spring.datasource.druid.filter.wall.config.drop-table-allow=false
	#是否允许非以上基本语句的其他语句，缺省关闭，通过这个选项就能够屏蔽 DDL
	spring.datasource.druid.filter.wall.config.none-base-statement-allow=false
	#检查 UPDATE 语句是否无 where 条件，这是有风险的，但不是 SQL 注入类型的风险
	spring.datasource.druid.filter.wall.config.update-where-none-check=true
	#SELECT ... INTO OUTFILE 是否允许，这个是 mysql 注入攻击的常见手段，缺省是禁止的
	spring.datasource.druid.filter.wall.config.select-into-outfile-allow=false
	#是否允许调用 Connection.getMetadata 方法，这个方法调用会暴露数据库的表信息
	spring.datasource.druid.filter.wall.config.metadata-allow=true
	#对被认为是攻击的 SQL 进行 LOG.error 输出
	spring.datasource.druid.filter.wall.log-violation=true
	#对被认为是攻击的 SQL 抛出 SQLExcepton
	spring.datasource.druid.filter.wall.throw-exception=true

	#配置 spring 关联
	#设置使用 Cglib 进行代理，因为部分需要代理的不是接口不适用于 JDK 动态代理，会报错
	spring.aop.proxy-target-class=true
	#配置 Druid 监控 Spring 包方法的调用
	spring.datasource.druid.aop-patterns=packages

重启应用

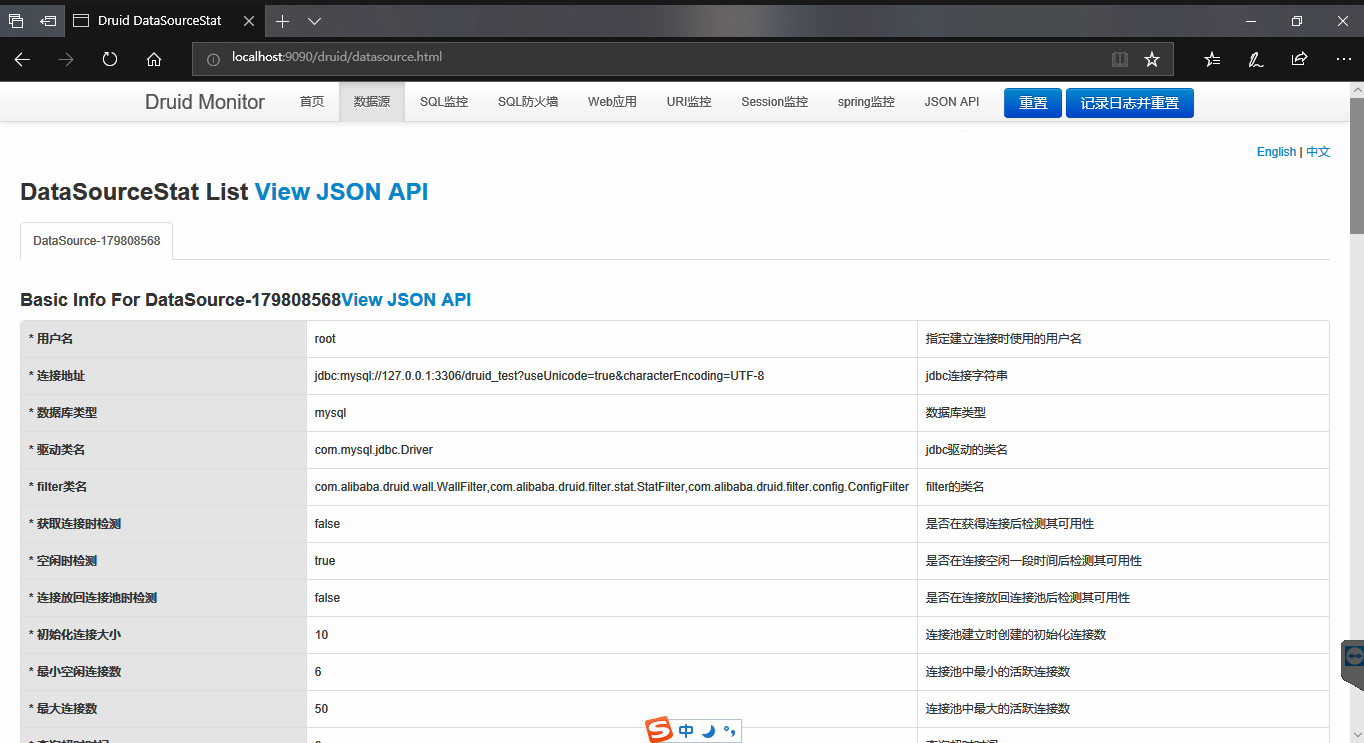

浏览器访问 http://localhost:9090/druid/login.html

# 12. 项目源码
